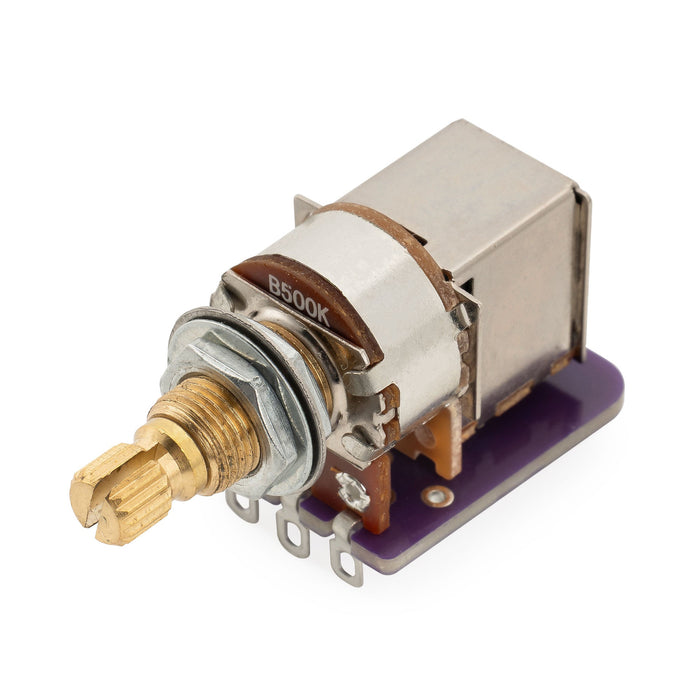

Musiclily Pro B500K PCB Mod DPDT Push-Pull Brass Pot Metric Split Standard Shaft 9.5mm Linear Taper Potentiometer for Electric Guitar Bass
SKU MX3654
Original price
$5.43
-
Original price
$5.43
Original price
$5.43
$5.43
-
$5.43
Current price
$5.43
Availability:
20 in stock, ready to be shipped

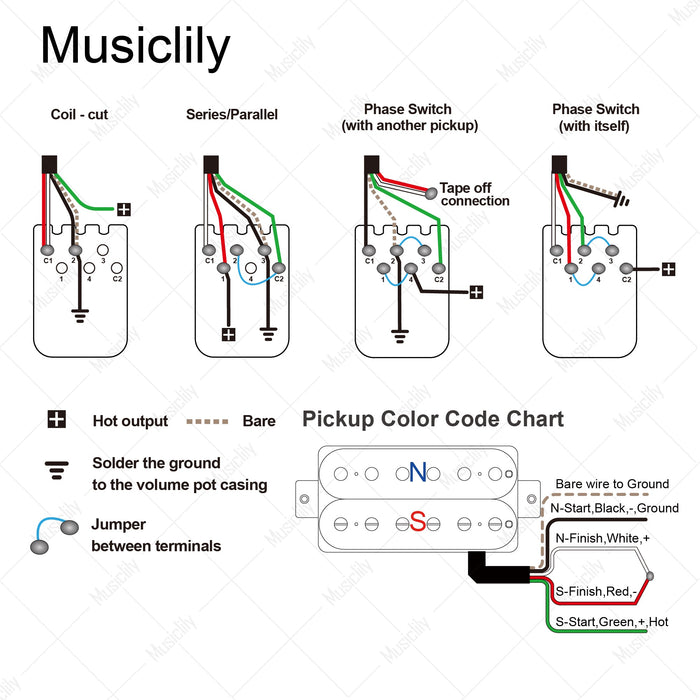

- Fits most imported or Asia made electric guitars and basses, ideal for coil splitting, coil tapping, series/parallel switching, and phase reversal mods, enhance instrument's wiring setup

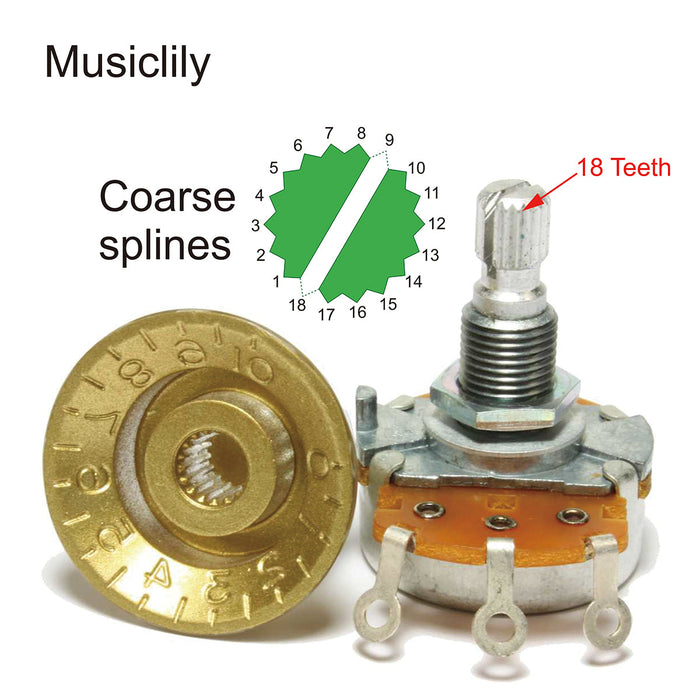

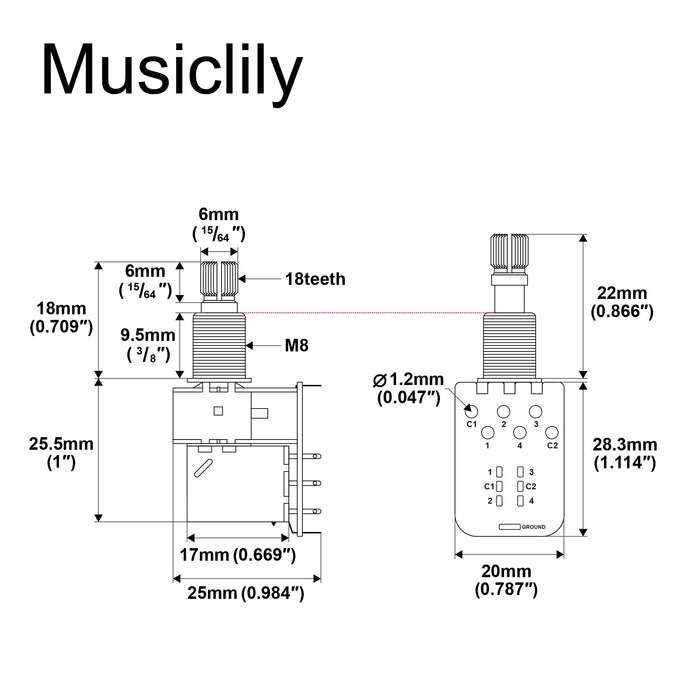

- Coarse 18-spline split shaft diameter: 6mm(15/64 inch), Metric sized M8 thread, 8mm in diameter, thread height: 9.5mm(3/8 inch)

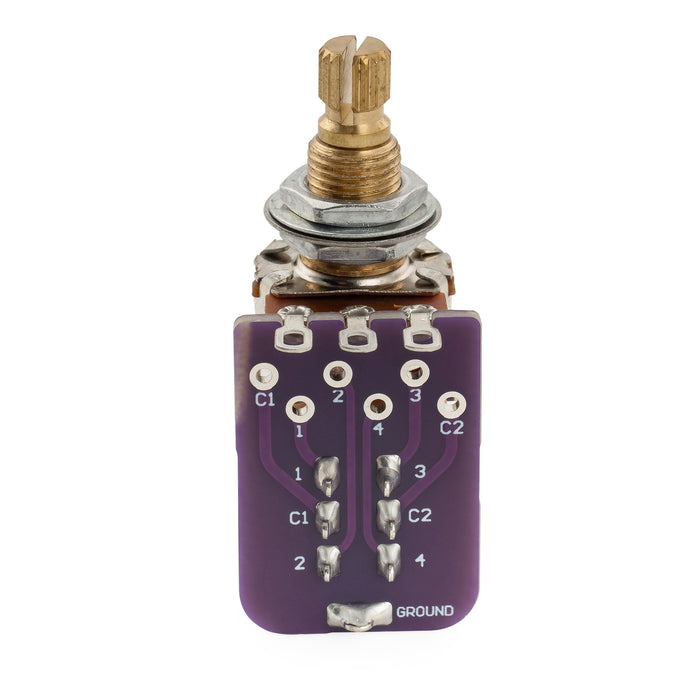

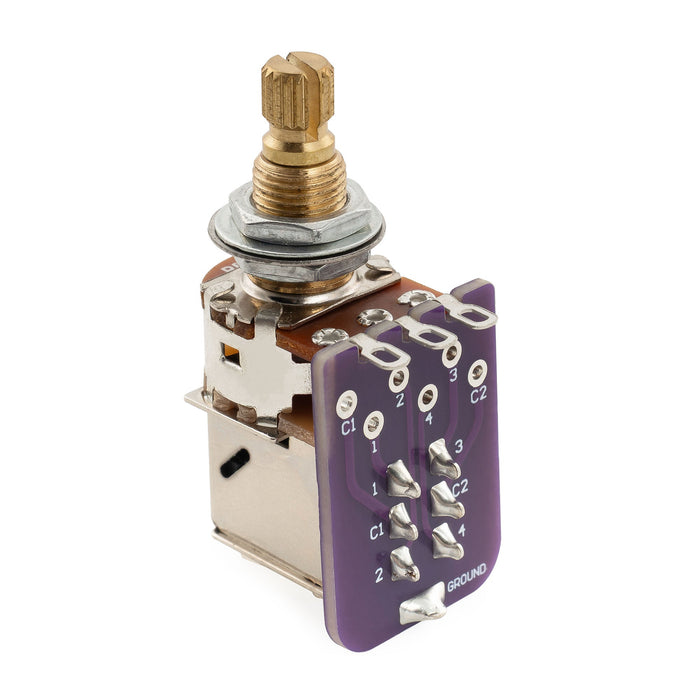

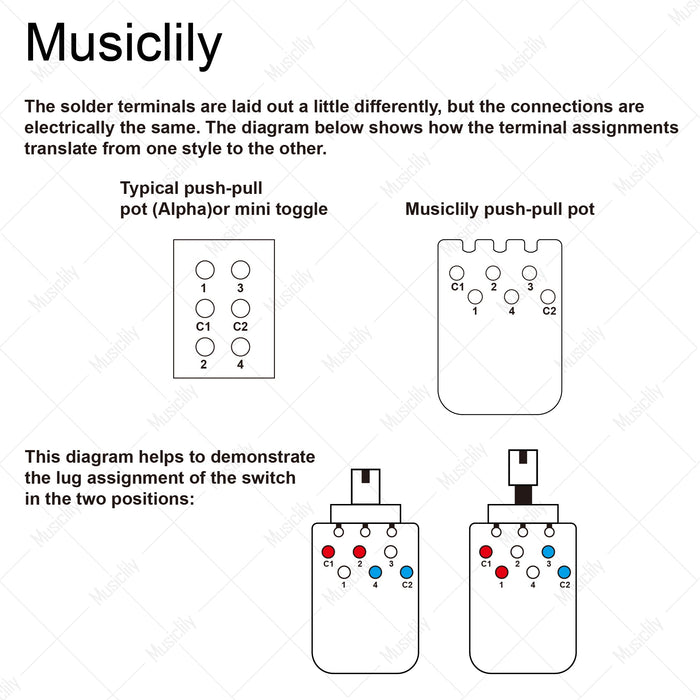

- Full brass made shaft and thread, better conductivity. The switch terminals are implemented via PCB for easy access and soldering, streamline the guitar wiring, reduce electronic noise, improve circuit reliability and installation efficiency
- Linear taper, resistance: 500K, tolerance: 20%, usually used for humbuckers, remains more high-end frequencies, gives brighter tone than 250K

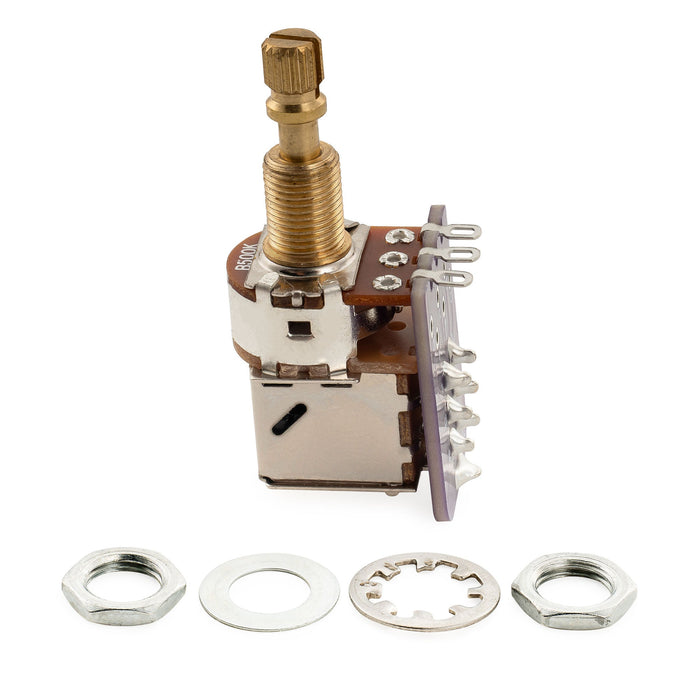

- Package includes: 1pc pot with mounting accessories
