Tele Pre-wired Pickguard Wiring Diagram

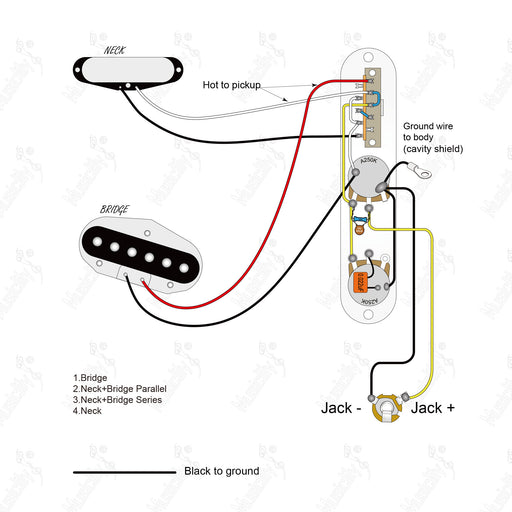

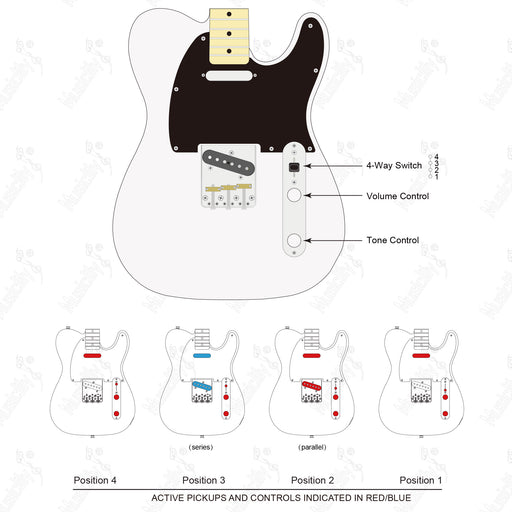

Wiring diagram of the Tele-SS pre-wired pickguard with Artec pickup and 4-way American switch.

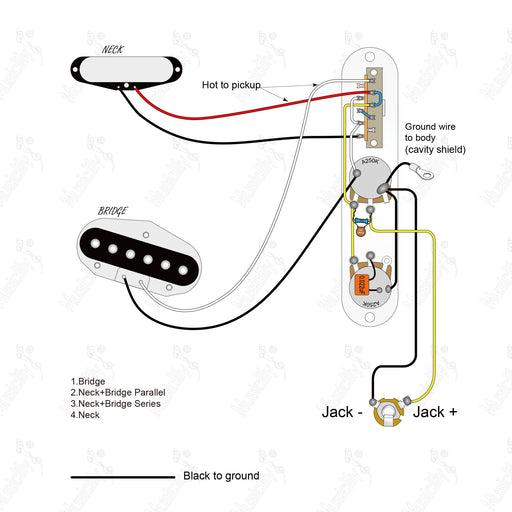

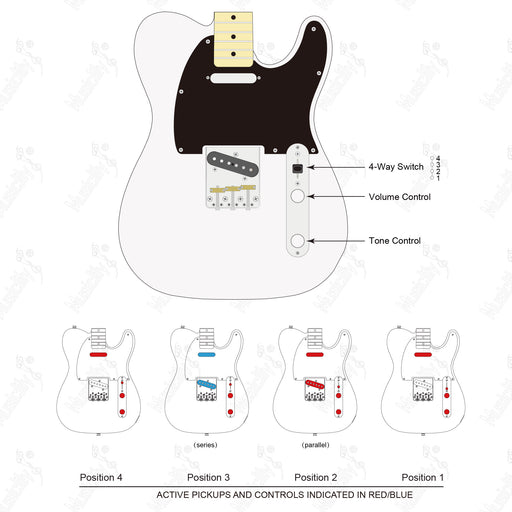

Wiring diagram of the Tele-SS pre-wired pickguard with Musiclily Basic pickup and 4-way American switch.

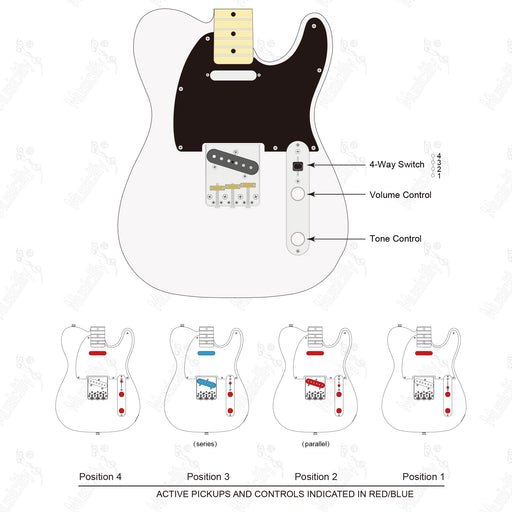

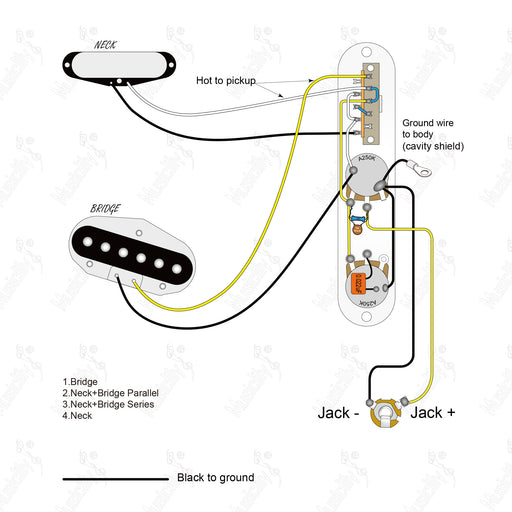

Wiring diagram of the Tele-SS pre-wired pickguard with Musiclily Pro pickup and 4-way American switch.

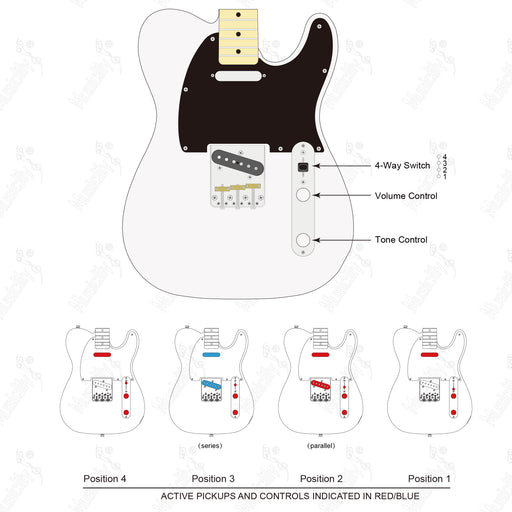

Wiring diagram of the Tele-SS pre-wired pickguard with Wilkinson M Series pickup and 4-way American switch.

Wiring diagram of the standard Tele-SS pre-wired pickguard with Artec pickup and American switch.

Wiring diagram of the standard Tele-SS pre-wired pickguard with Musiclily Basic pickup and American switch.

Wiring diagram of the standard Tele-SS pre-wired pickguard with Musiclily Pro pickup and American switch.

Wiring diagram of the standard Tele-SS pre-wired pickguard with Revival pickup and American switch.

Wiring diagram of the standard Tele-SS pre-wired pickguard with Wilkinson M Series pickup and American switch.

Wiring diagram of the standard Tele-SS pre-wired pickguard with Artec pickup and imported switch.

Wiring diagram of the standard Tele-SS pre-wired pickguard with Musiclily Basic pickup and imported switch.

Wiring diagram of the standard Tele-SS pre-wired pickguard with Musiclily Pro pickup and imported switch.

Wiring diagram of the standard Tele-SS pre-wired pickguard with Revival pickup and imported switch.

Wiring diagram of the standard Tele-SS pre-wired pickguard with Wilkinson M Series pickup and imported switch.
