ST Pre-wired Pickguard Wiring Diagram

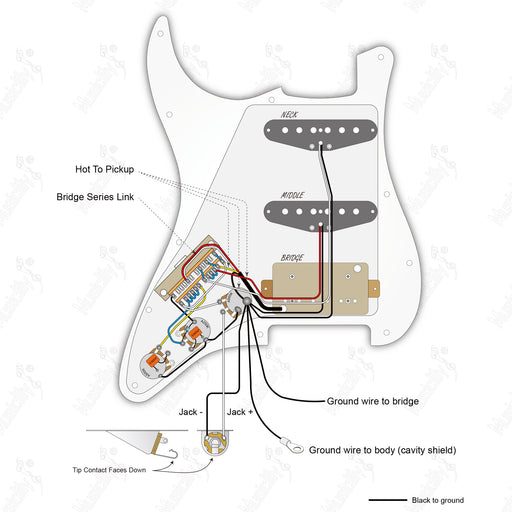

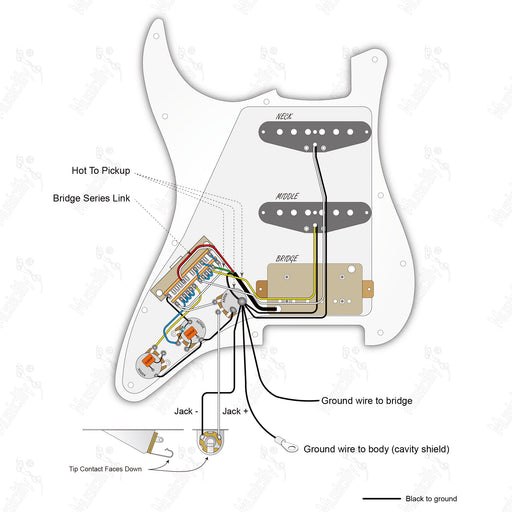

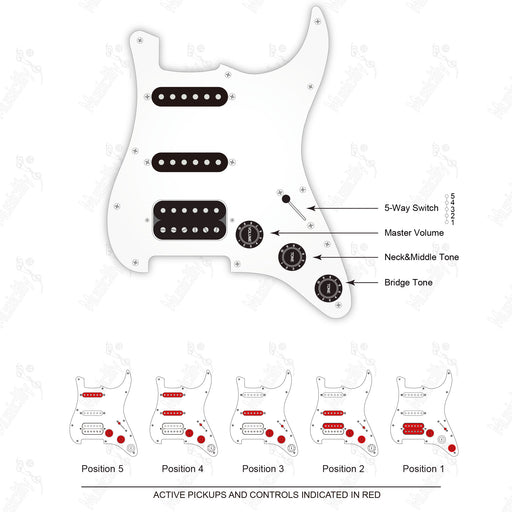

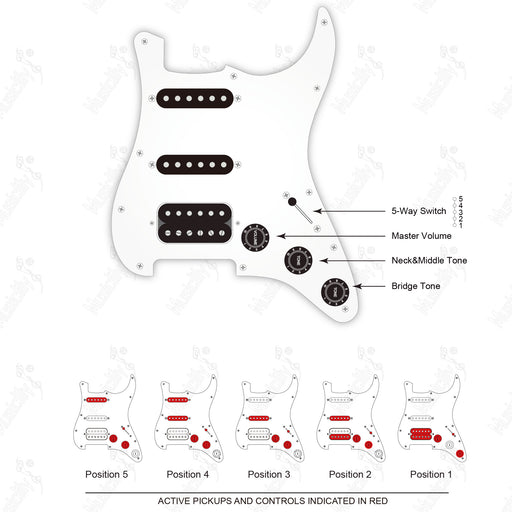

Wiring diagram of the ST-HSS Auto-Split & Matched Load pre-wired pickguard with Artec pickup and American switch.

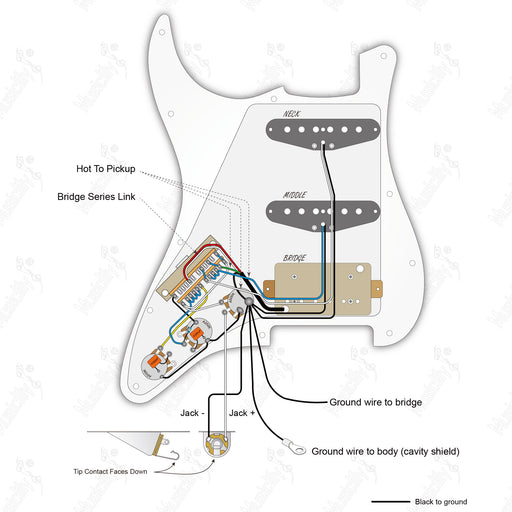

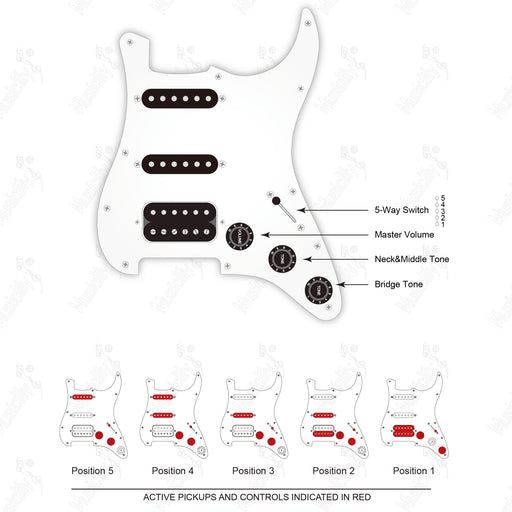

Wiring diagram of the ST-HSS Auto-Split & Matched Load pre-wired pickguard with Musiclily Pro pickup and American switch.

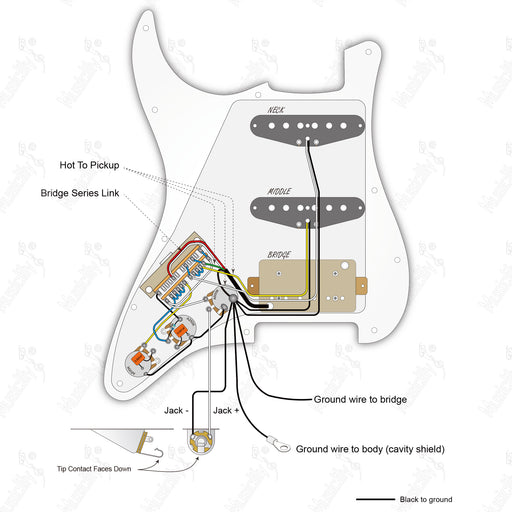

Wiring diagram of the ST-HSS Auto-Split & Matched Load pre-wired pickguard with Wilkinson M Series pickup and American switch.

Wiring diagram of the ST-HSS Auto-Split & Matched Load pre-wired pickguard with Wilkinson M Series pickup and American switch.

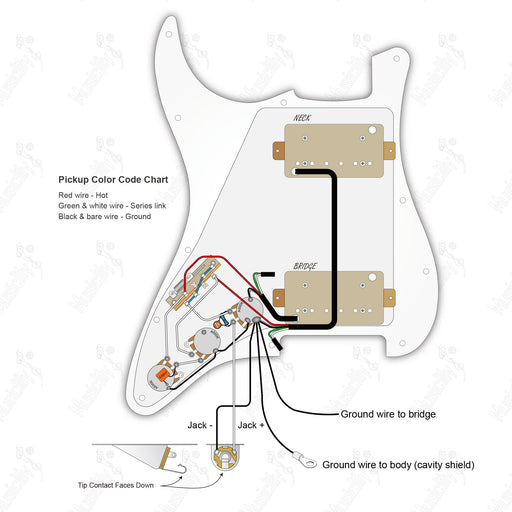

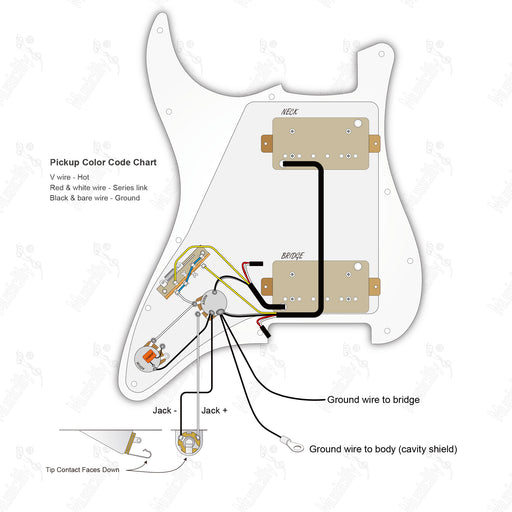

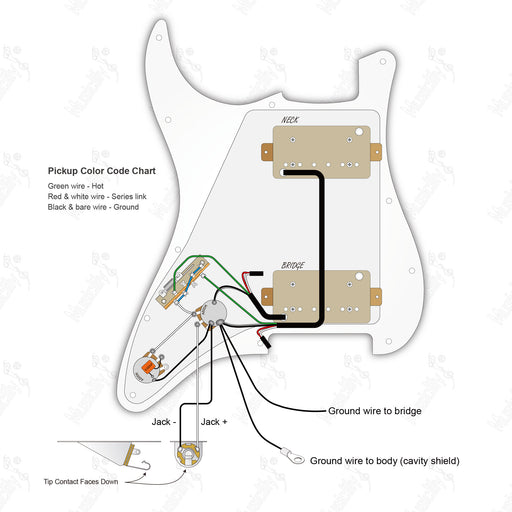

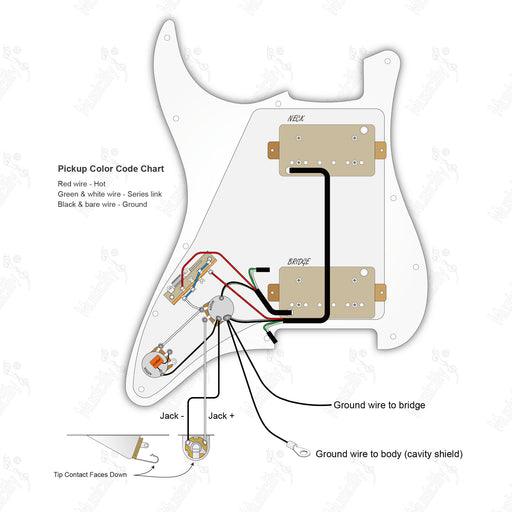

Wiring diagram of the standard ST-HH 2 pots pre-wired pickguard with Artec pickup and American switch.

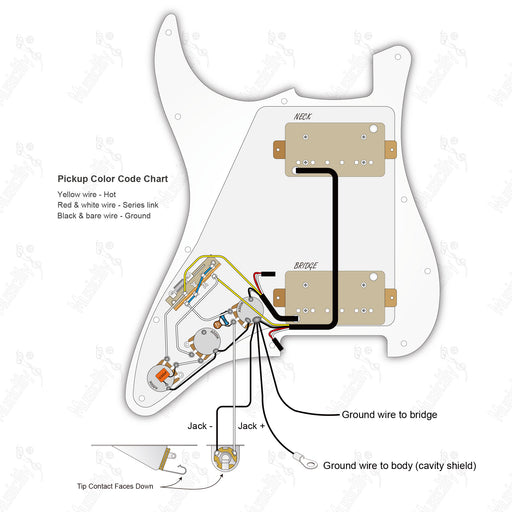

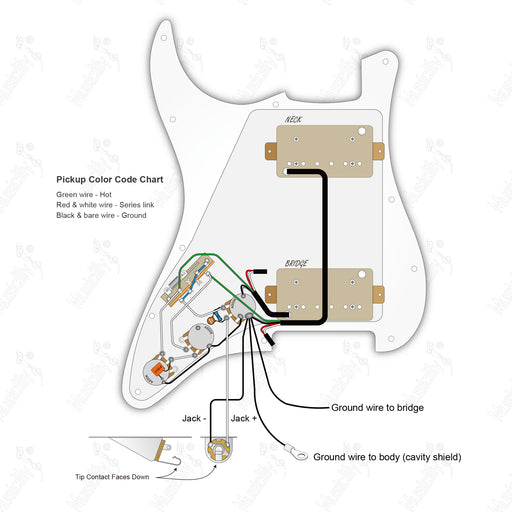

Wiring diagram of the standard ST-HH 3 pots pre-wired pickguard with Artec pickup and American switch.

Wiring diagram of the standard ST-HH 2 pots pre-wired pickguard with Musiclily Basic pickup and American switch.

Wiring diagram of the standard ST-HH 3 pots pre-wired pickguard with Musiclily Basic pickup and American switch.

Wiring diagram of the standard ST-HH 2 pots pre-wired pickguard with Musiclily Pro pickup and American switch.

Wiring diagram of the standard ST-HH 3 pots pre-wired pickguard with Musiclily Pro pickup and American switch.

Wiring diagram of the standard ST-HH 2 pots pre-wired pickguard with Revival pickup and American switch.

Wiring diagram of the standard ST-HH 3 pots pre-wired pickguard with Revival pickup and American switch.

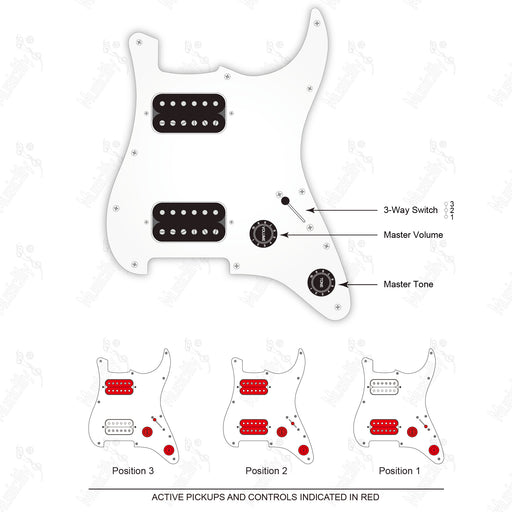

Wiring diagram of the standard ST-HH 2 pots pre-wired pickguard with Wilkinson M Series pickup and American switch.

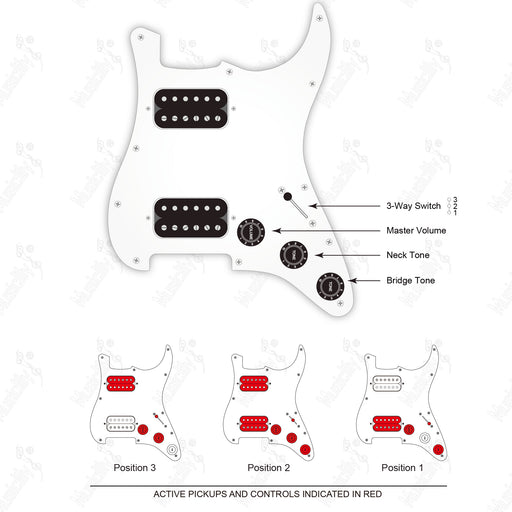

Wiring diagram of the standard ST-HH 3 pots pre-wired pickguard with Wilkinson M Series pickup and American switch.

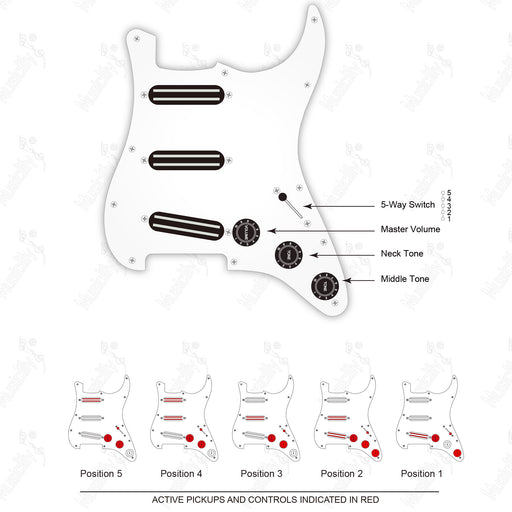

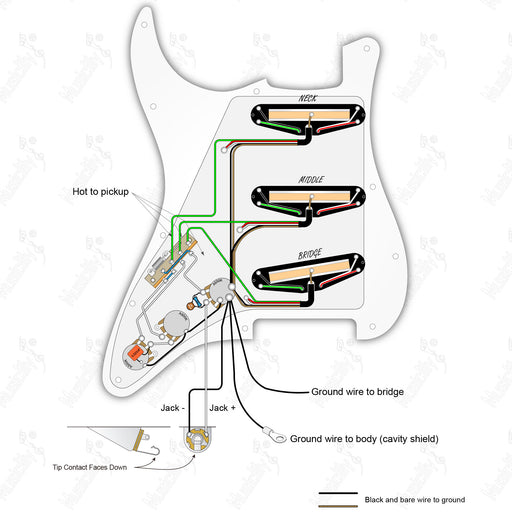

Wiring diagram of the standard ST-HHH pre-wired pickguard with Artec mini rail humbucker pickup and American switch.

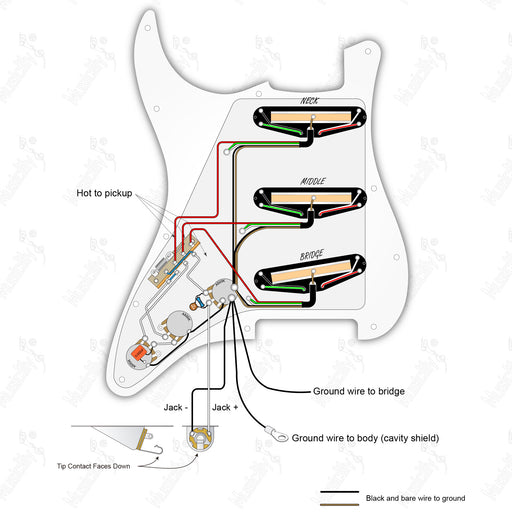

Wiring diagram of the standard ST-HHH pre-wired pickguard with Musiclily Basic mini rail humbucker pickup and American switch.

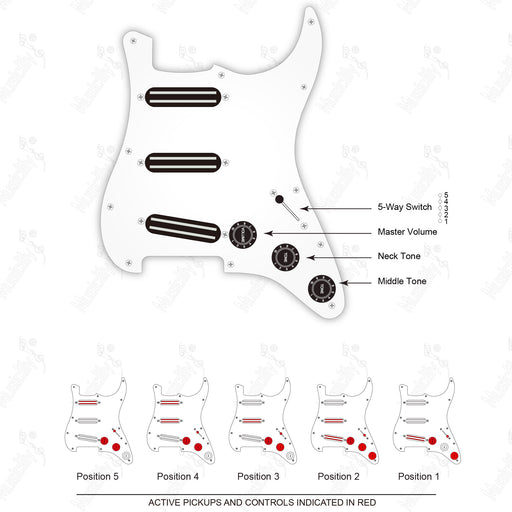

Wiring diagram of the standard ST-HHH pre-wired pickguard with Musiclily Pro mini rail humbucker pickup and American switch.

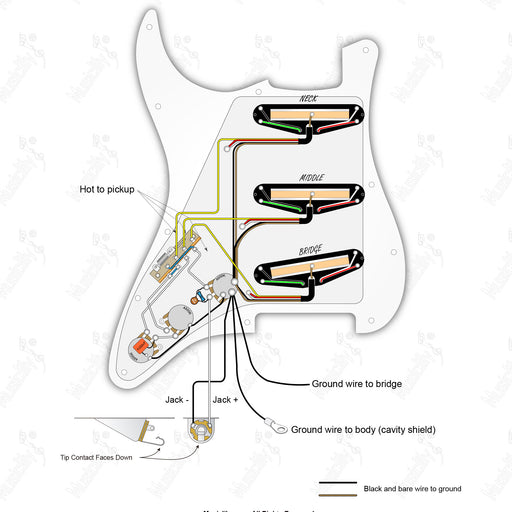

Wiring diagram of the standard ST-HHH pre-wired pickguard with Wilkinson M Series mini rail humbucker pickup and American switch.

Wiring diagram of the standard ST-HH 2 pots pre-wired pickguard with Artec pickup and imported switch.

Wiring diagram of the standard ST-HH 3 pots pre-wired pickguard with Artec pickup and imported switch.

Wiring diagram of the standard ST-HH 2 pots pre-wired pickguard with Musiclily Basic pickup and imported switch.

Wiring diagram of the standard ST-HH 3 pots pre-wired pickguard with Musiclily Basic pickup and imported switch.

Wiring diagram of the standard ST-HH 2 pots pre-wired pickguard with Musiclily Pro pickup and imported switch.

Wiring diagram of the standard ST-HH 3 pots pre-wired pickguard with Musiclily Pro pickup and imported switch.
