ST-HSS-American Style

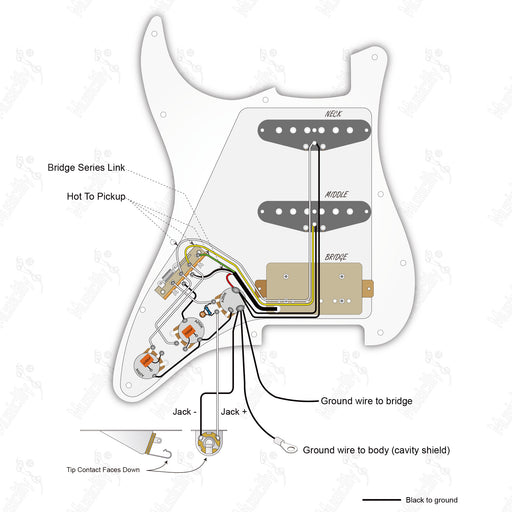

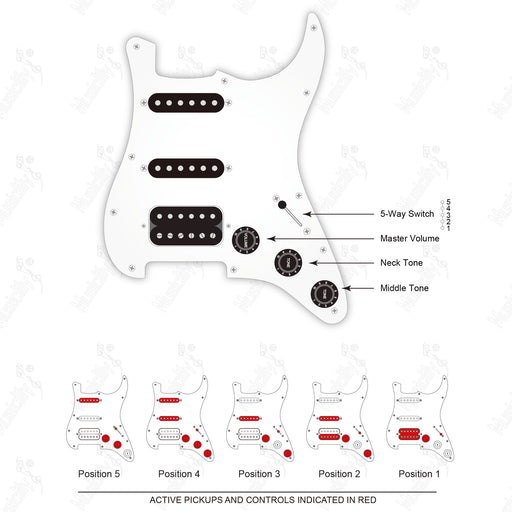

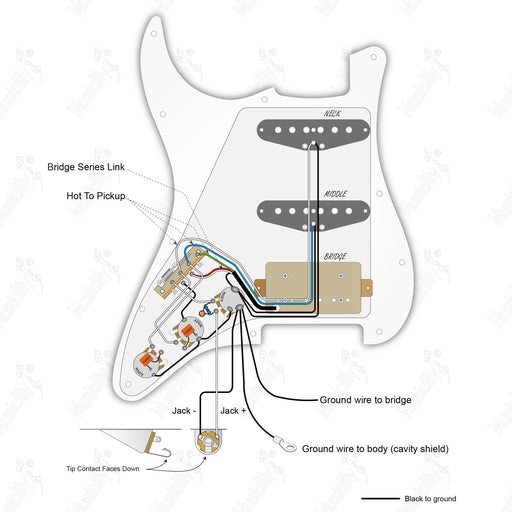

Wiring diagram of the ST-HSS Auto-Split & Matched Load pre-wired pickguard with Artec pickup and American switch.

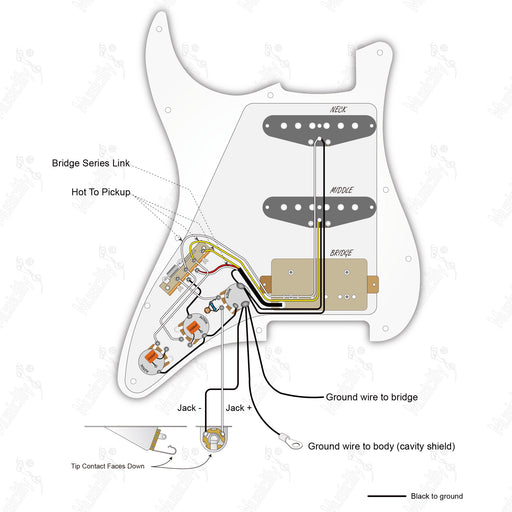

Wiring diagram of the ST-HSS Auto-Split & Matched Load pre-wired pickguard with Musiclily Pro pickup and American switch.

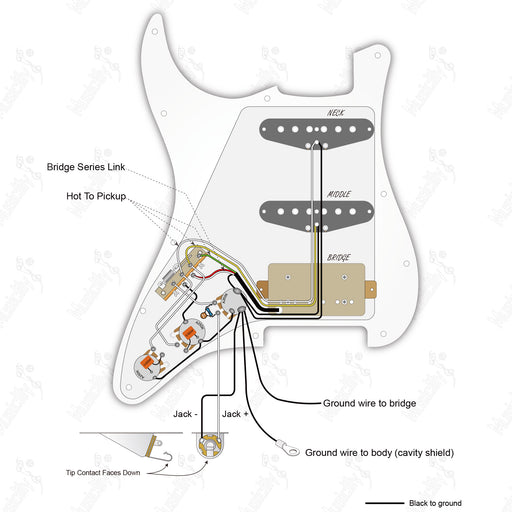

Wiring diagram of the ST-HSS Auto-Split & Matched Load pre-wired pickguard with Wilkinson M Series pickup and American switch.

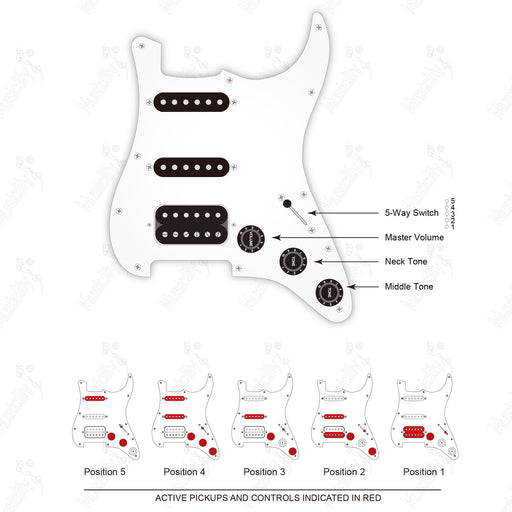

Wiring diagram of the ST-HSS Auto-Split & Matched Load pre-wired pickguard with Wilkinson M Series pickup and American switch.

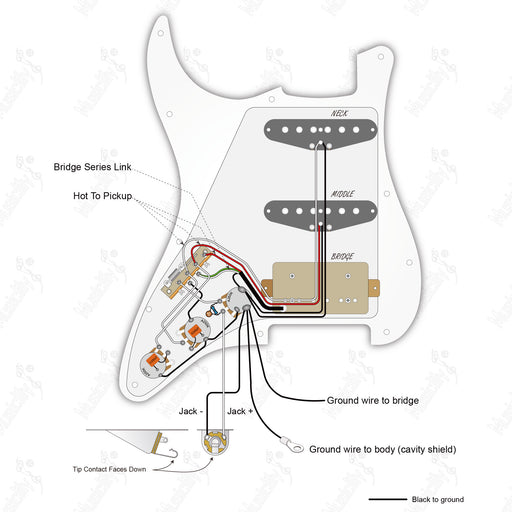

Wiring diagram of the ST-HSS Auto-Split humbucker pre-wired pickguard with Artec pickup and American switch.

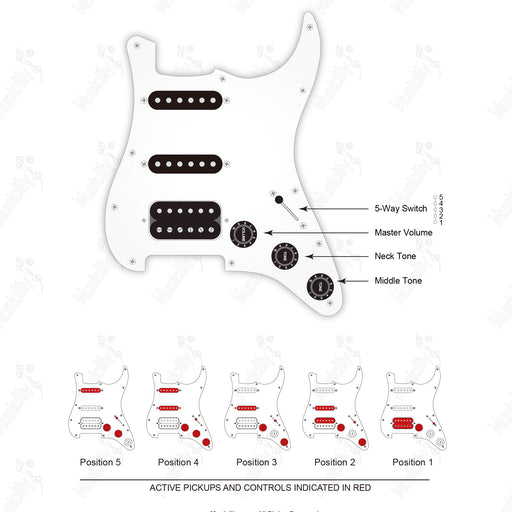

Wiring diagram of the ST-HSS Auto-Split humbucker pre-wired pickguard with Musiclily Basic pickup and American switch.

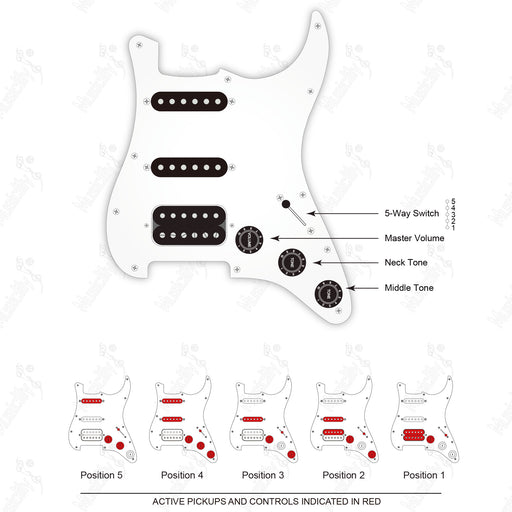

Wiring diagram of the ST-HSS Auto-Split humbucker pre-wired pickguard with Musiclily Pro pickup and American switch.

Wiring diagram of the ST-HSS Auto-Split humbucker pre-wired pickguard with Revival pickup and American switch.

Wiring diagram of the ST-HSS Auto-Split humbucker pre-wired pickguard with Wilkinson M Series pickup and American switch.

Wiring diagram of the ST-HSS Auto-Split humbucker pre-wired pickguard with Wilkinson M Series pickup and American switch.

Wiring diagram of the standard ST-HSS No Auto-Split pre-wired pickguard with Artec pickup and American switch.

Wiring diagram of the standard ST-HSS No Auto-Split pre-wired pickguard with Musiclily Basic pickup and American switch.

Wiring diagram of the standard ST-HSS No Auto-Split pre-wired pickguard with Musiclily Pro pickup and American switch.

Wiring diagram of the standard ST-HSS No Auto-Split pre-wired pickguard with Revival pickup and American switch.

Wiring diagram of the standard ST-HSS No Auto-Split pre-wired pickguard with Wilkinson M Series pickup and American switch.

Wiring diagram of the standard ST-HSS No Auto-Split pre-wired pickguard with Wilkinson M Series pickup and American switch.
