Standard ST-SSS American Style With Revival Pickup Wiring Diagram

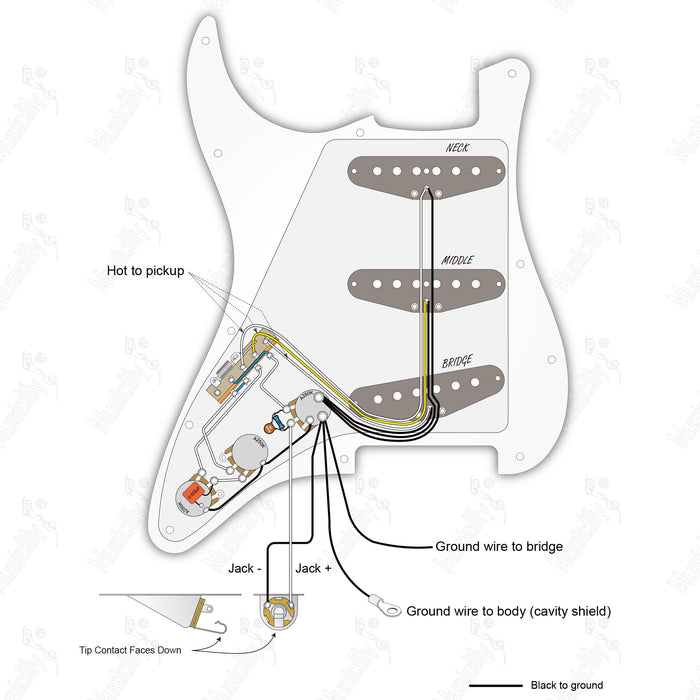

Wiring diagram of the standard ST-SSS pre-wired pickguard with Revival pickup and American switch.
