Standard ST-HSS (No Auto-Split) Import Style With Musiclily Pro Pickup Wiring Diagram

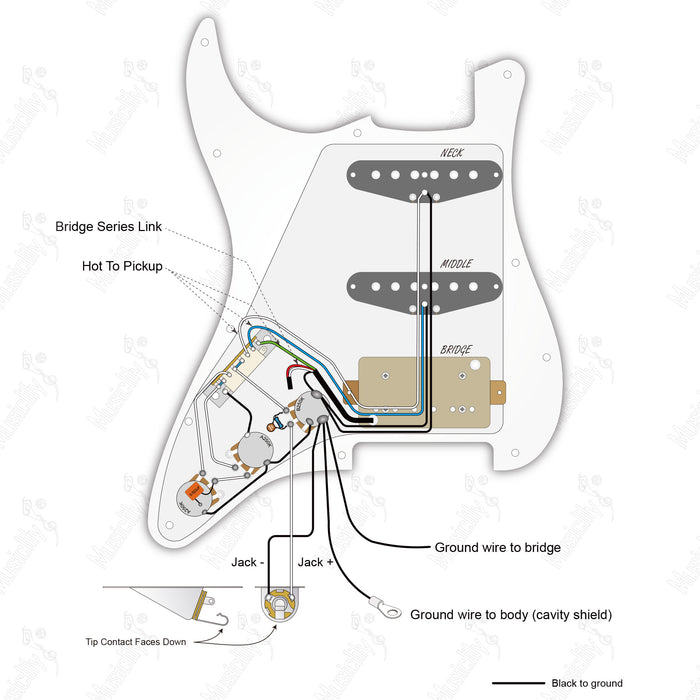

Wiring diagram of the standard ST-HSS No Auto-Split pre-wired pickguard with Musiclily Pro pickup and imported switch.
