ST-HSH Import Style Auto Split Humbucker With Revival Pickup Wiring Diagram

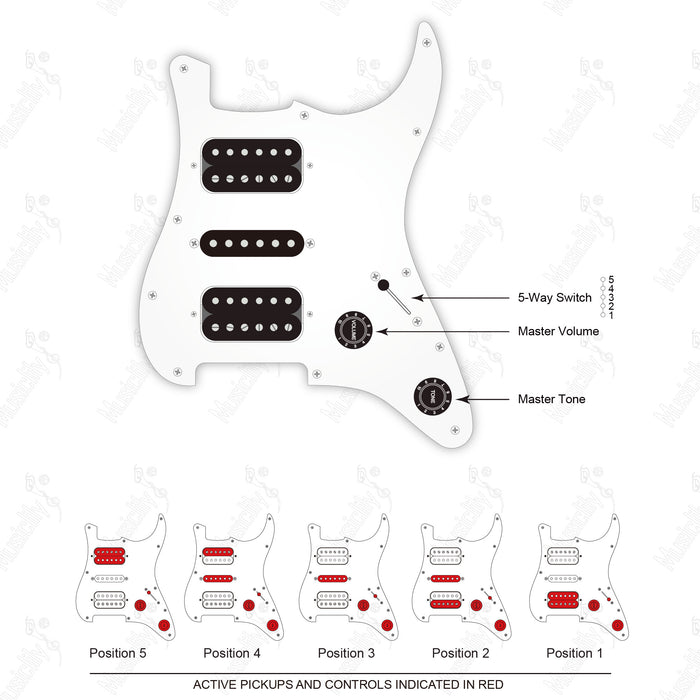

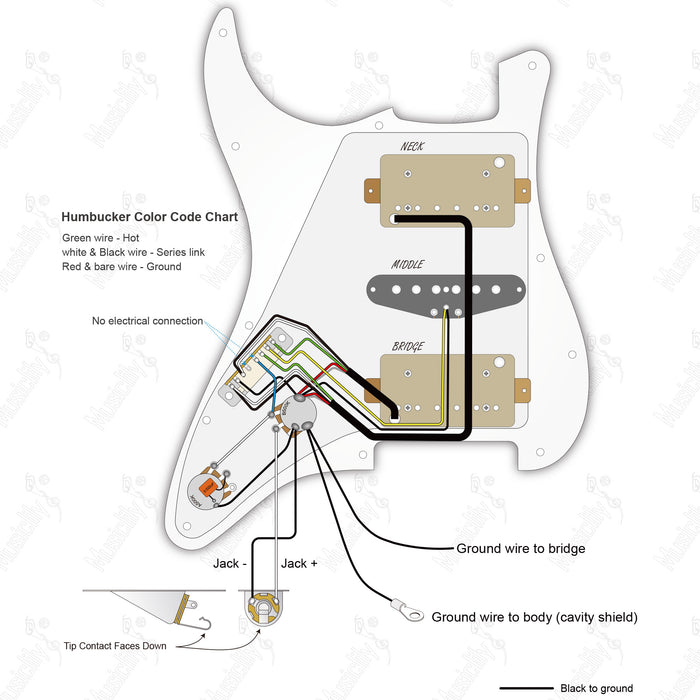

Wiring diagram of the ST-HSH Auto-Split humbucker pre-wired pickguard with Revival pickup and imported switch.
