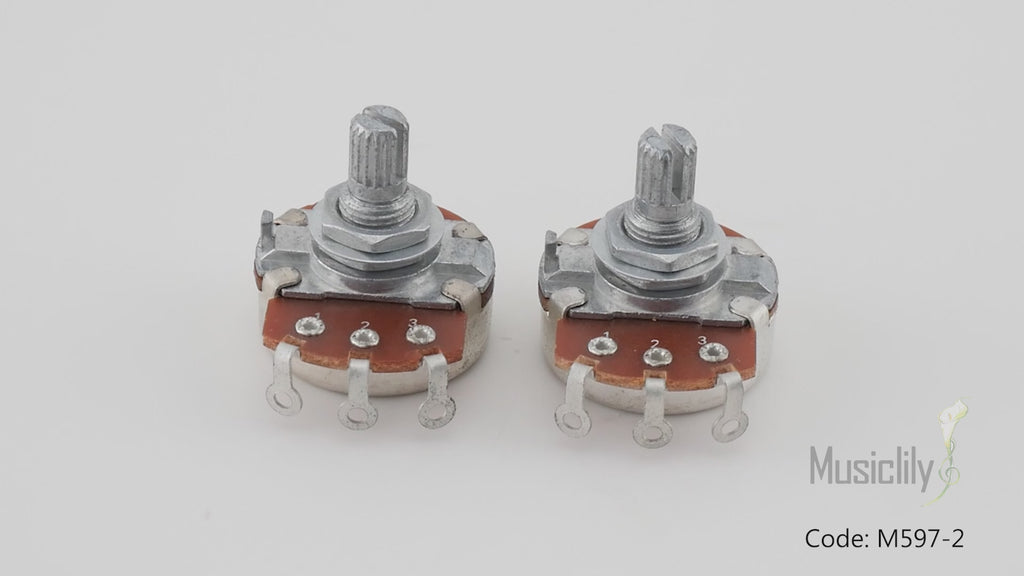

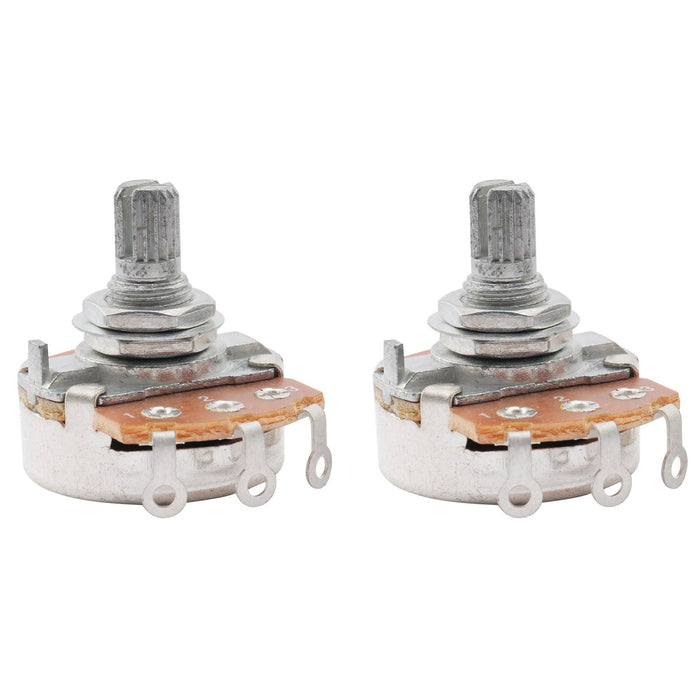

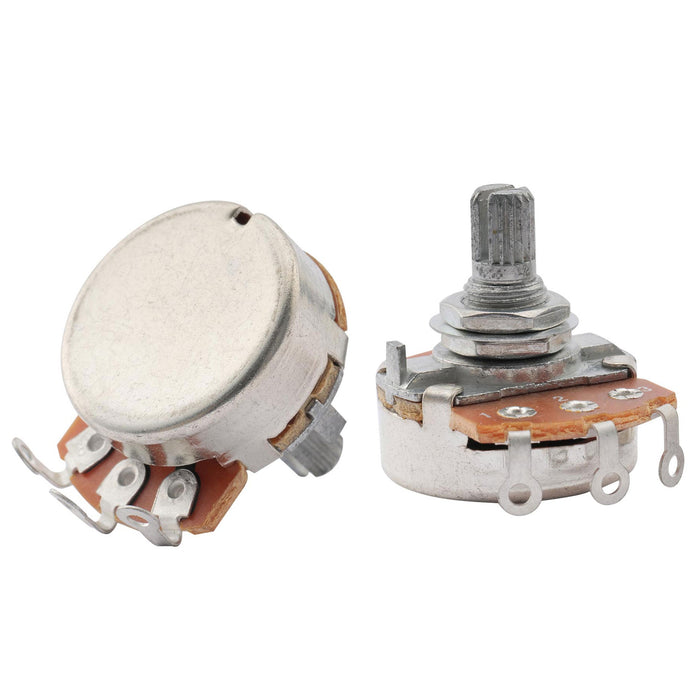

Musiclily Basic 500K Metric Coarse 18-Spline Split Short Shaft Pots Audio/Linear Taper Potentiometers for Electric Guitar Bass (Set of 2)

SKU M597-2
$1.66 - $1.66
$1.66
$1.66 - $1.66
$1.66
Availability:
154 in stock, ready to be shipped
Availability:
144 in stock, ready to be shipped
  • Fits most imported or Asia made electric guitars and basses

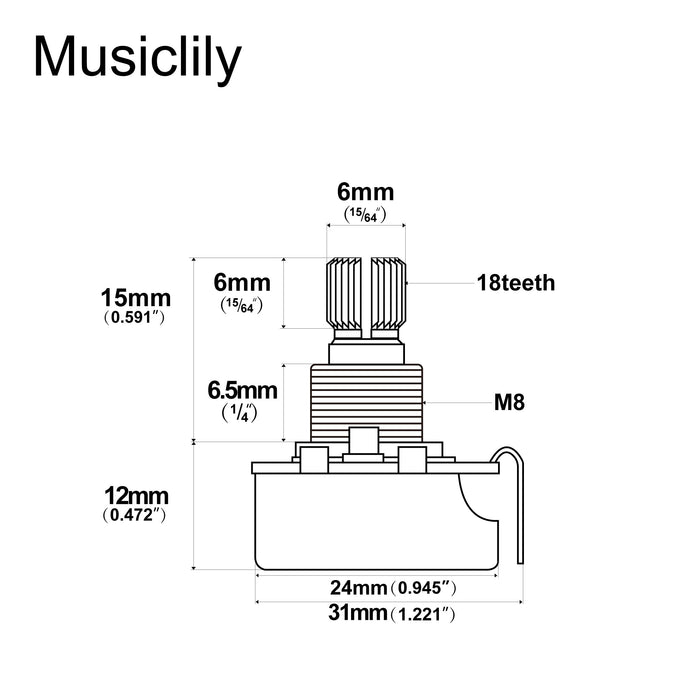

  • Coarse 18-spline split shaft diameter: 6mm(15/64 inch), Metric sized M8 thread, 8mm in diameter, thread height: 6.5mm(1/4 inch)
  • Made of aluminium alloy
  • Audio taper, resistance: 500K, tolerance: 20%, usually used for humbuckers, remains more high-end frequencies, gives brighter tone than 250K

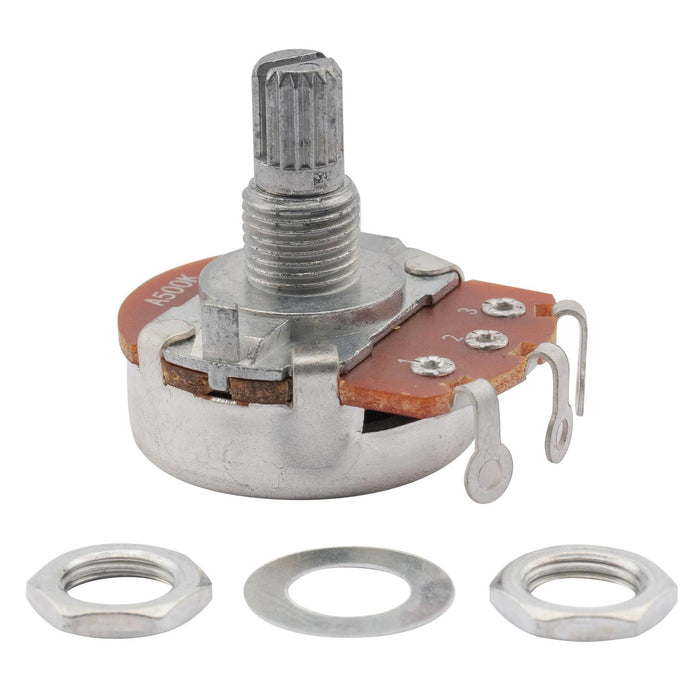

  • Package includes: 2pcs pots with mounting accessories

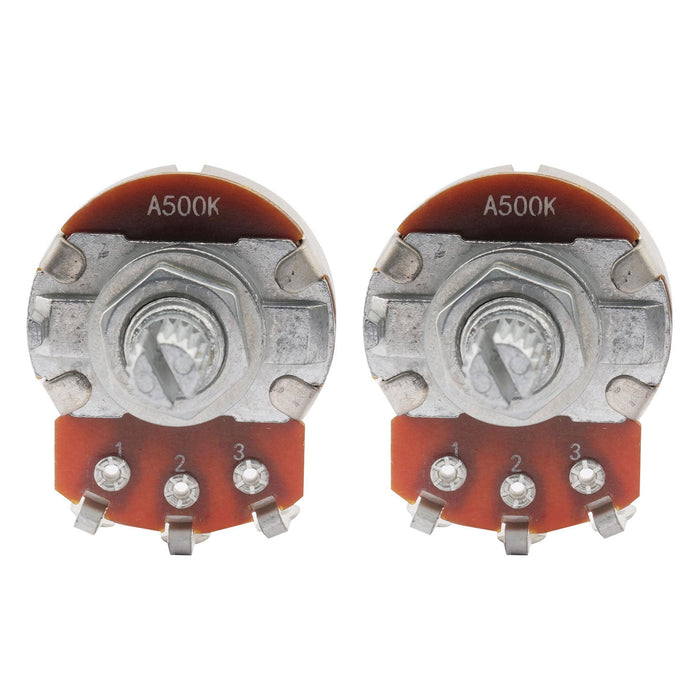

    Resistance: A500K

    Customer Reviews

    Based on 65 reviews
    69%
    (45)
    23%
    (15)
    8%
    (5)
    0%
    (0)
    0%
    (0)
    B
    Bryan Jackson
    Well made

    These are solid pots. Well made and work great. 10/10 would recommend.

    S
    SWiggins
    Great value and works fine

    Pots worked perfectly. Quiet operation. Takes solder to the case easily. Threaded section was a little short. Had to leave the lock washer and flat washers off. Great value though.

    T
    Tim O'Neal
    What I've come to expect

    These pots are price right and are of superior quality. I have come to trust Musiclily for the majority of my musician needs. These pots are exactly what I needed.

    T
    Trevor
    Works great no issues

    Would recommend for modding

    P
    Pierremoe
    Pretty good but only one nut.

    Anyone installing these will have to find another nut to space it to a proper height. Only one nut is included so if you can't find another you'll have to live with it being set at the maximum knob height. On a strat, the knob will stick out too high.

    123

    Reviews in Other Languages

    C
    Christopher Ledgerwood
    As advertised

    As advertised.

    F
    Francis
    Aparentemente buenos

    Lo he usado para sustituir el control de volumen de una Harley Benton TE-70 RW.A tener en cuenta:- La olla no es de tama?o mini, sino tama?o normal, pero encaja perfectamente, tanto en el hueco del cuerpo como la rosca en la placa. Eso s��: hay que quitarle (con un alicate es f��cil) el peque?o resalte que trae junto al cuello para que la superficie quede plana y asiente correctamente.- No con CTS sino "made in China" pero la calidad no parece mala.- El conjunto, una vez montado funciona sin ruidos con un recorrido suave y preciso. La guitarra tra��a un potenci��metro lineal de 500M -tipo B- y el cambio ha sido enorme. El control de volumen ahora funciona perfectamente y es gradual seg��n mueves el pomo de control (antes lo hac��a casi al 80% del final del recorrido). Igual es apreciaci��n m��a, pero el tono y el "color" del sonido parecen haber mejorado notablemente.- Una vez montado, la perilla de control se queda un poco alta -unos 2 mm- y no llega a alojar hasta el final, pero eso se solucionar��a poni��ndole una de las tuercas (el paquete trae 2 por potenci��metro) para que quede por el interior y "baje" un poco. A mi no me ha importado este detalle.En resumen: muy contento con la compra.

    k
    kaufmann
    POTENZIOMETRO 500Kohm

    Il valore di resistenza (scritto sul potenziometro) "500 K" �� risultato essere 470 kOhm.Ottimo prodotto con contatti solidi e rotazione senza giochi. (a differenza di altri potenziometri con alberino di plastica e base di plastica che se si "scalda un po'troppo" durante la saldatura danno da subito problemi di contatto fra pista conduttiva e terminali a saldare, e inoltre dopo alcune rotazioni prendono subito un gioco eccessivo). . Consigliato quindi al 100%.
