Standard LP-HH 60s With Musiclily Basic Pickup Wiring Diagram

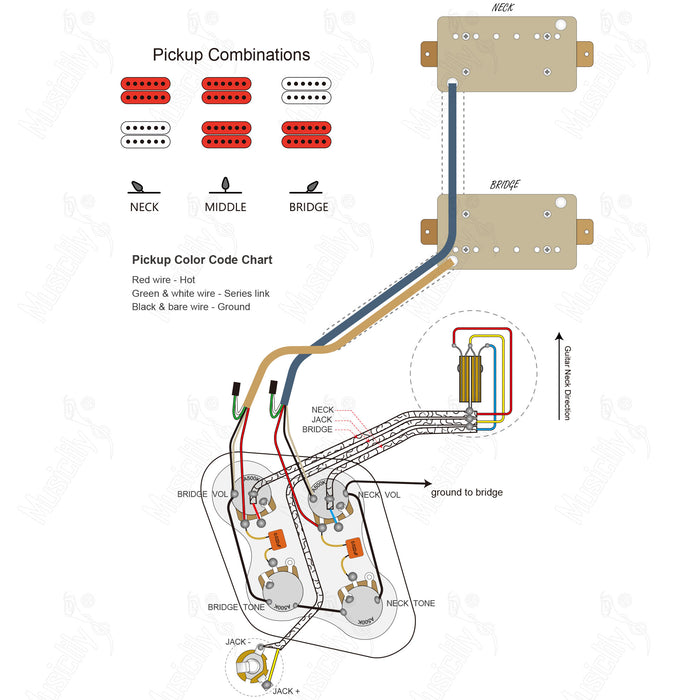

Wiring diagram of the standard LP-HH 60s pre-wired pickguard with Musiclily Basic pickup.
