Standard SG-HH Vintage With Musiclily Basic Pickup Wiring Diagram

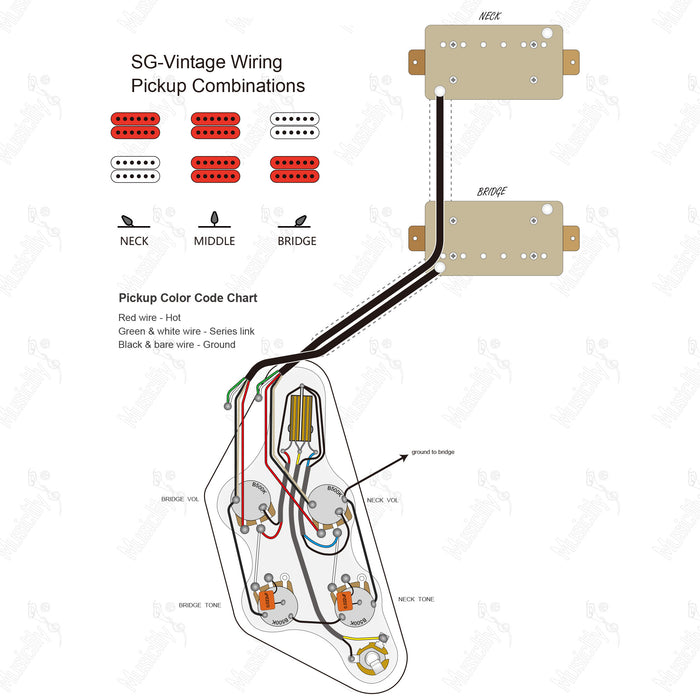

Wiring diagram of the standard SG-HH Vintage pre-wired pickguard with Musiclily Basic pickup.
