wilkinson m series stacked p90 soapbar ceramic humbucker sized single coil pickup bridge pickup 16k for sg lp style electric guitar mx2079p

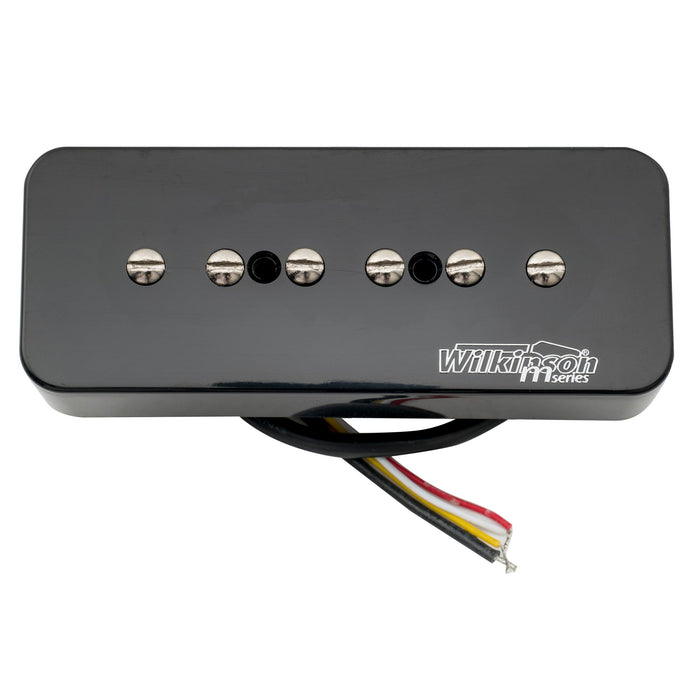

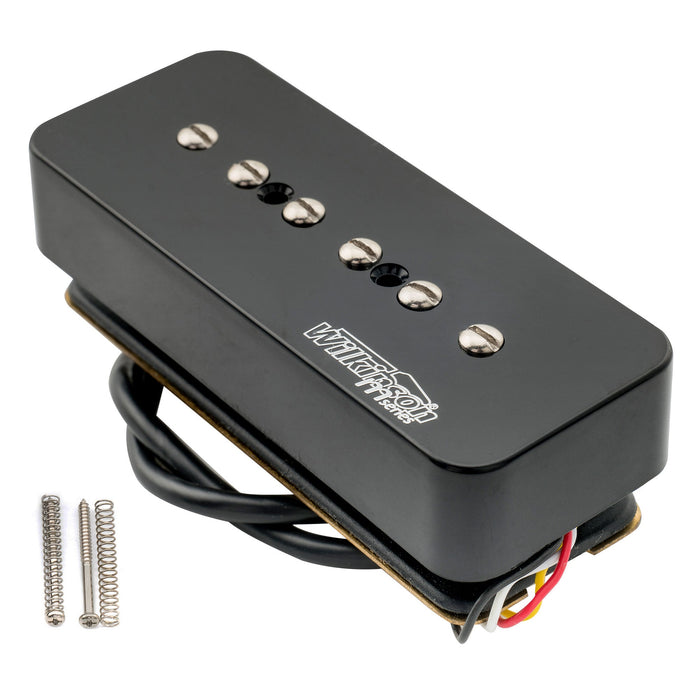

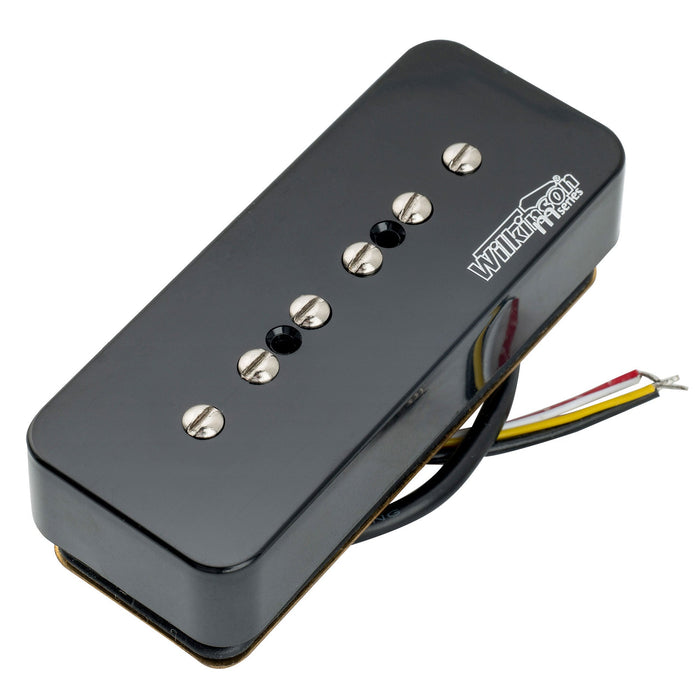

Wilkinson M Series Stacked P90 Soapbar Ceramic Humbucker Sized Single Coil Pickup Bridge Pickup 16K for SG LP Style Electric Guitar

SKU MX2079BK
$21.60 - $21.60
$21.60
$21.60 - $21.60
$21.60
Availability:
60 in stock, ready to be shipped
Availability:
53 in stock, ready to be shipped
  • For many style electric guitar need P-90 pickups, bridge position, wax potted. Typical guitar model includes SG, LP and the Epiphone Casino, even Fender Tele can use it as well.

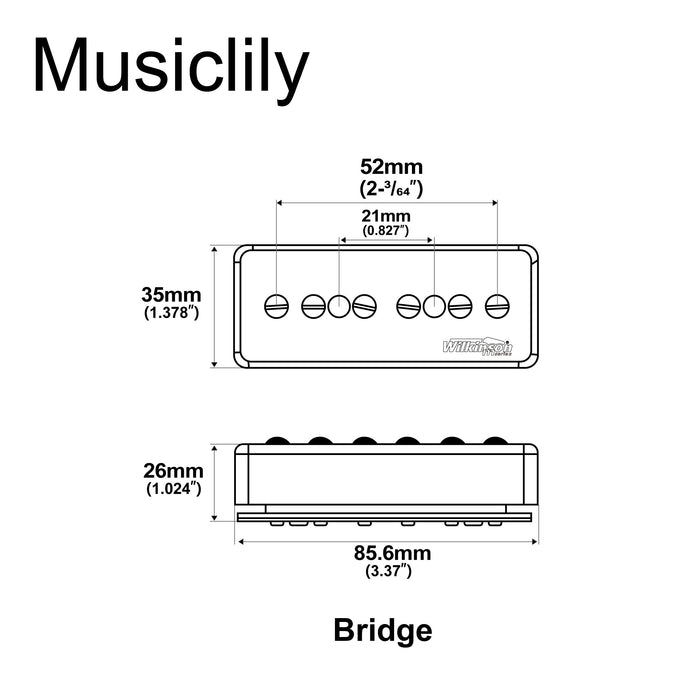

  • Genuine Wilkinson parts, M series is made in China and distributed by Musiclily. Polepiece spacing: 52mm(2-3/64 inch)
  • Powerful P90 Speical, this pickup is famous in ICONIC sound with humcancelling. It is stacked coils with four conductors to split the coils for a classic single sound, using a coil split switch will give you access to two of the most famous sound in guitar style ever.

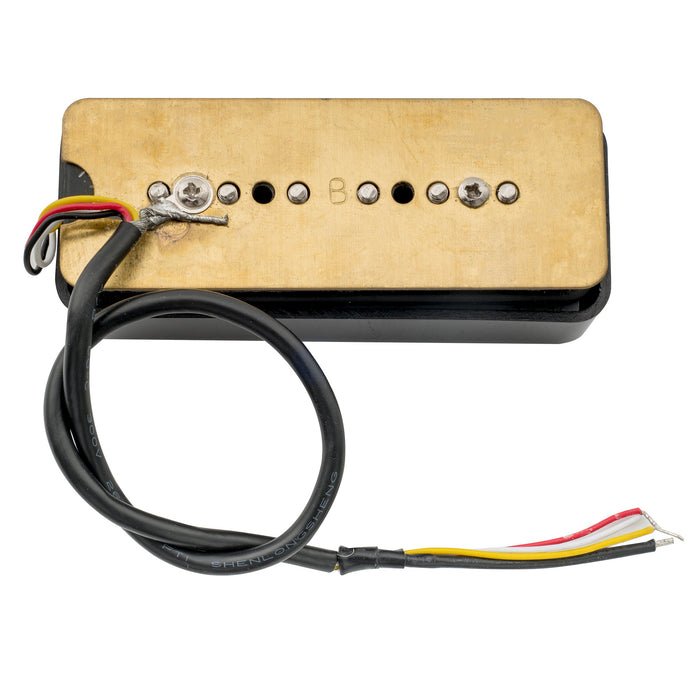

  • Magnet: Ceramic; D.C. Resistance: 16K, tolerance: 0.5K. White wire is hot. On the pickup back, B for Bridge.Yellow wire is hot, black is ground, white and red wire are split coil wire
  • Package included: 1pc pickup. Note: Our screws maybe will not fit your usage, please use your own if need
    Color: Bridge Black

    Customer Reviews

    Based on 10 reviews
    40%
    (4)
    30%
    (3)
    30%
    (3)
    0%
    (0)
    0%
    (0)
    N
    Nina Altavilla
    Looks nice

    Doesn��t fit the p90 space in my guitar

    f
    firebird phil

    These pickups are quiet but for 15 K's they are not loud. In single coil mode they give you more volume as it often is the case with stacked humbuckers.

    A
    Amazon Customer
    Stacked p90

    The pickup is about 90% noiseless. I put it in an Epiphone Lp Special, I had to router the cavity deeper to fit. So to install takes some work but was worth the effort. Has really good output also

    j
    john k mendoza
    Too high in pickup pocket

    I received this yesterday and had no problems installing it into the bridge position of my singlecut. On the positive side, there was no hum.The two big negatives, however, are that it is a lot thicker than a regular P 90 suis it very high to the strings and there��s no way to get a lower without literally cutting wood out of the guitar. Additionally, the output is very low. I had to lower the neck pick up to compensate and it is still a lot louder than this. I double checked my wiring by redoing it twice just to make sure that I had it correct. No issues there.I do like the sound but I hate the volume is so low.

    M
    Meghan Klein
    NOT humbucker size as described

    Item not as described.This is NOT ��humbucker size��, and the mounting screws are barely long enough to go through the pickup. Let alone long enough to install the springs and make it adjustable. Pickup is 1�� tall, the springs are also 1��, and the supplied screws are 1.25��. Even without the springs, the huge clump of solder on the bottom holding the ground makes the pickup too tall for the 1/4�� of thread left to grab into the guitar. We should not have to source our own screws because of your laziness!Will give an update when i finally get this mounted. So far not impressed at all. This is ridiculous.

    User picture
    12

    Reviews in Other Languages

    m
    maikoon
    Brummfreier P90 Ersatz

    Ich habe eine PRS Se The One, super Gitarre aber das Brummen des P90s ging mir doch jetzt echt auf den Keks. Der Wilkinson Stacked P90 kostet ja nur einen Bruchteil des Seymour Duncan stacked P90, also zum Ausprobieren den Wilkinson bestellt. Das die Pickupfr?sung f��r einen stacked Pickup nicht tief genug sein k?nnte hatte ich erwartet. Also mit der Oberfr?se das Loch tiefer gemacht und dann den neuen Pickup eingebaut. Was soll ich sagen, der neue Sound ist der Hammer. Es klingt immer noch voll nach P90, aber v?llig brummfrei. Aber auch der Grundsound klingt unglaublich viel besser als vor dem Umbau. Clean, Crunch oder Lead, alles ist definierter und transparenter, und das f��r schlappe 25 Euro! Mir ist sowieso ein R?tsel wie einige Hersteller ihre Pickup Preise rechtfertigen. Willkinson rules!
    21
    Translate
