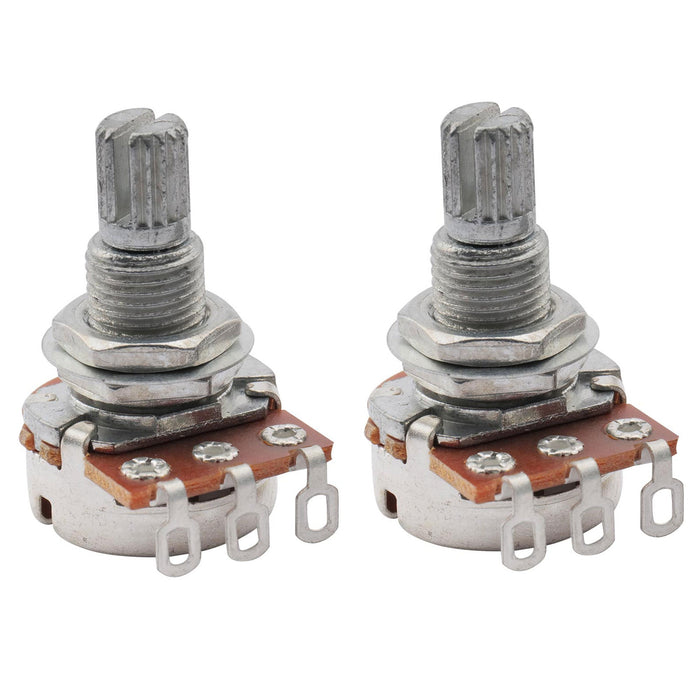

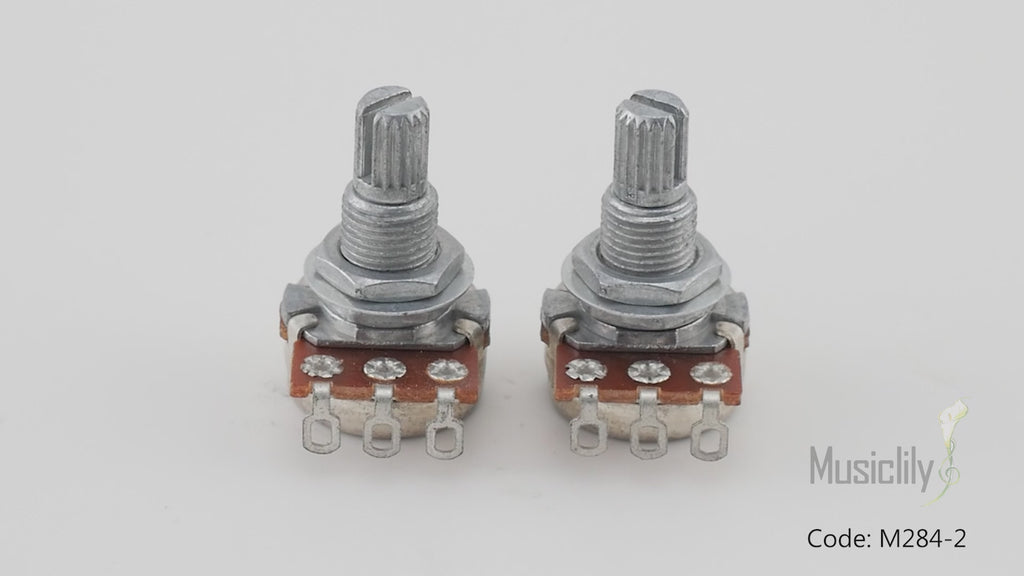

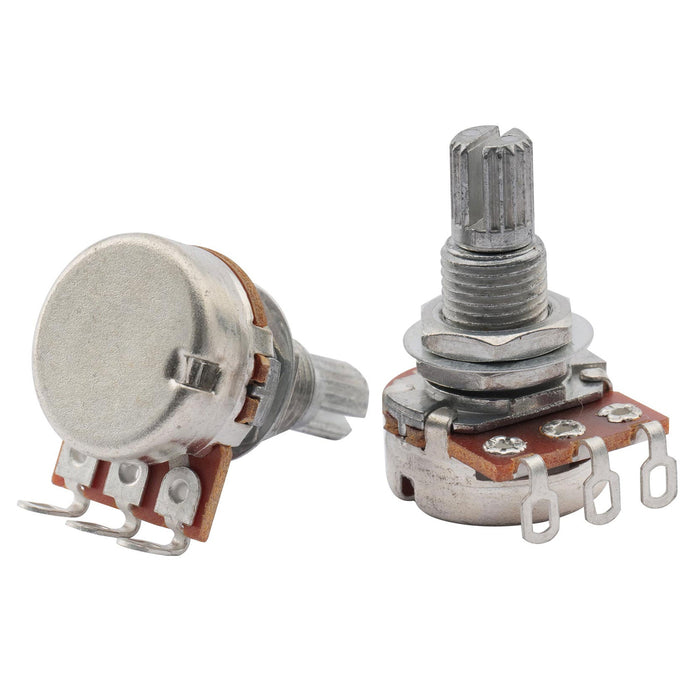

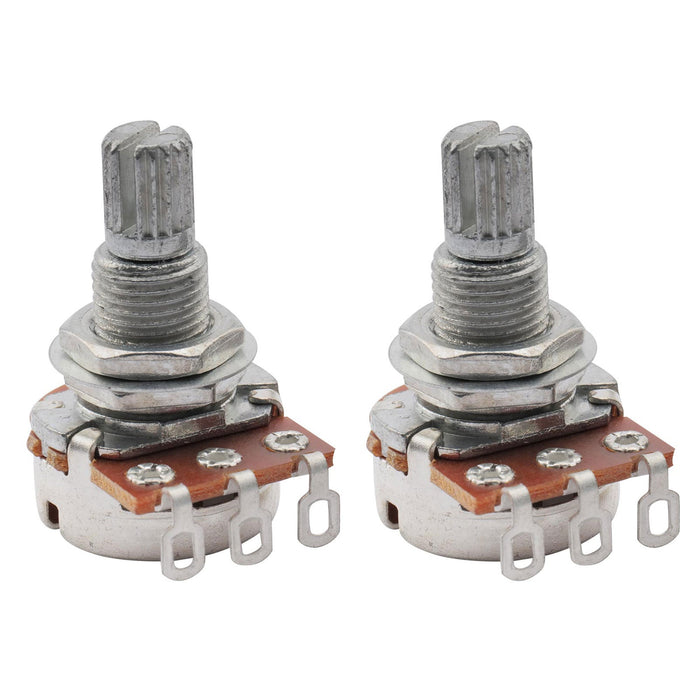

Musiclily Basic 500K Mini Metric Coarse 18-Spline Split Shaft Pots Audio/Linear Taper Potentiometers for Electric Guitar Bass (Set of 2)

SKU M284-2
Original price $0.86 - Original price $0.86
Original price
$0.86
$0.86 - $0.86
Current price $0.86
Availability:
45 in stock, ready to be shipped
Availability:
46 in stock, ready to be shipped
  • Fits most imported or Asia made electric guitars and basses

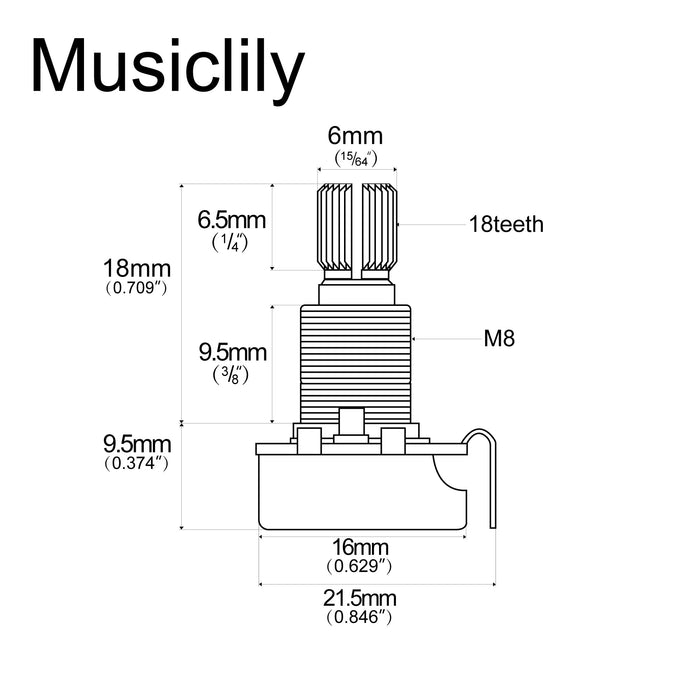

  • Coarse 18-spline split shaft diameter: 6mm(15/64 inch), Metric sized M8 thread, 8mm in diameter, thread height: 9.5mm(3/8 inch)
  • Made of aluminium alloy
  • Audio taper, resistance: 500K, tolerance: 20%, usually used for humbuckers, remains more high-end frequencies, gives brighter tone than 250K

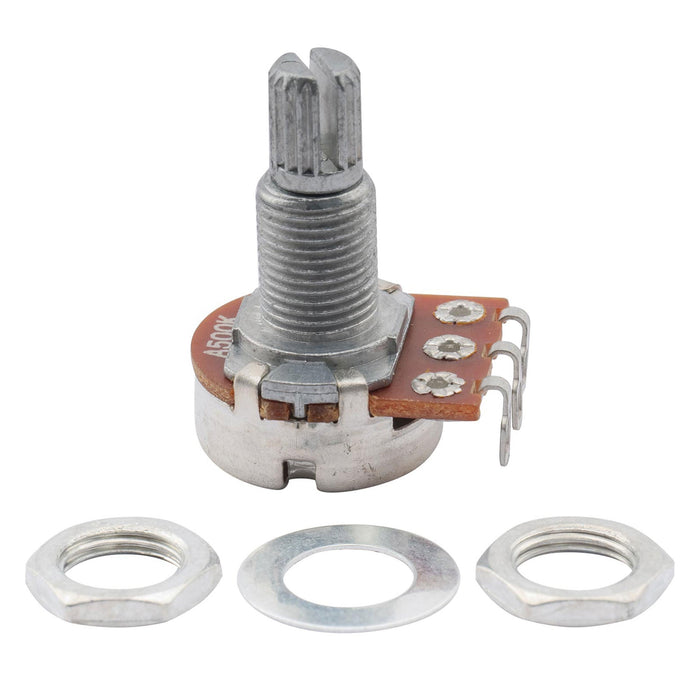

  • Package includes: 2pcs pots with mounting accessories

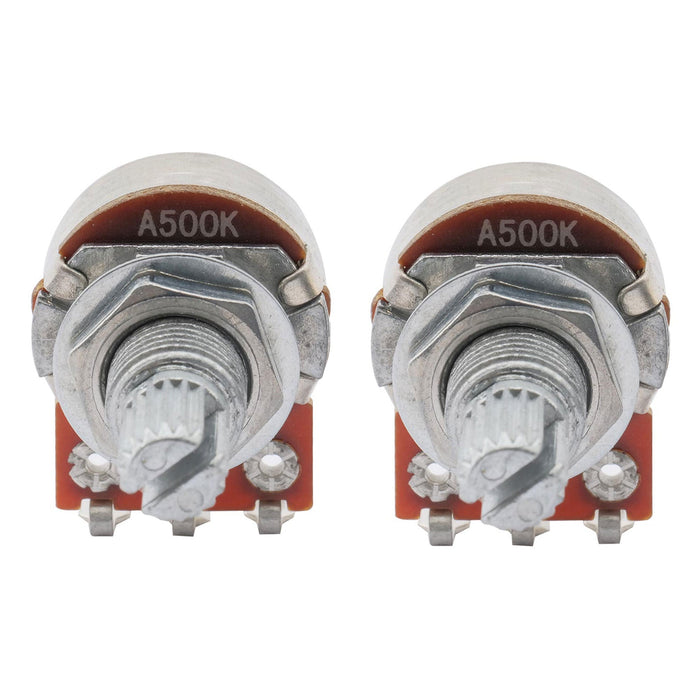

    Resistance: A500K 9.5mm

    Customer Reviews

    Based on 90 reviews
    70%
    (63)
    17%
    (15)
    8%
    (7)
    6%
    (5)
    0%
    (0)
    M
    Moria's Gate
    Works for Revstar RSS20

    Work great, Yamaha Revstar Knobs fit. Pots solder very well too.

    S
    Sam Williams
    Fit great in my bass, fixes cheap instruments with bad components

    After wiring a new pickup into my Dean Edge 09 bass, I noticed the sound would cut in and out with the slightest wire movement. I thought I had made a mistake, but thought it was odd that it happened when a potentiometer tab moved. Never heard of these breaking like that before but bought one of these to test it.Wow this is so much better than the cheap quality that came with my bass. Size is perfect (measure yours first to know for sure though) and the action isn't really loose like my other one. These are a good size and suitable for either volume or tone applications (typically 500k is for hum buckers though, fyi...if you have a single-coil pickup consider the 250k).In case you didn't know..."A" knobs are not a linear 1:1 increase as you turn. A linear graph sounds off to most people, which is why the curve is logarithmic instead. "B" knobs are linear and sometimes used for tone. Honestly it probably doesn't matter one way or another, but if you slap a couple of "A" knobs in your instrument you'll be fine.Note: this doesn't come with a resistor like some packs do (it makes the "tone" sound). Make sure to find one elsewhere if you need one.

    T
    Tim Roschmann
    It works

    ...

    B
    Bryan Jackson
    Good quality

    These 250k pots were a little snug fitting into a Dean bass. I ended up having to widen the hole a bit to allow them to fit. I��ll blame that on the bass and not the pots, because the pots match the measurements. Once they were in they worked well. Build quality seems good. I recommend them to others.

    M
    Mark B. Heller
    Works well.

    I replaced a scratchy pot in my guitar.

    Reviews in Other Languages

    A
    Amazon Customer
    pots

    as described

    T
    Thiago
    Good

    Like it

    d
    delaey
    Correct

    Attention au marquage en Europe A = lin��aire; B = logarithmique, aux USA c'est l'inverse
